회전하는 캘리퍼스(Rotating Calipers)
개요
한동안 바빠서 새 알고리즘을 공부할 틈이 없었는데, 연휴 기념 오랫만에 들고온 기하 알고리즘 ~
아래 내용은 CCW와 Convex Hull에 대한 이해를 바탕으로 한다.
CCW: https://doraeul19.tistory.com/297
Convex Hull: https://doraeul19.tistory.com/343
회전하는 캘리퍼스(Rotating Calipers)
캘리퍼스는 아래와 같이 길이를 측정하는 도구로, 회전하는 캘리퍼스 알고리즘은 볼록 다각형을 돌면서 두 지점간의 거리를 구하는 알고리즘이다.
지지선과 대척점
지지선(A line of support): 볼록 다각형에 대해 점이나 변에 접한 직선
대척점(Anti podal points): 평행한 두 지지선이 있을 때, 그 지지선에 닿아있는 두 점(A와 B는 대척점, A와 C는 대척점)
회전하는 캘리퍼스 과정
직경: 평행한 두 지지선의 거리 중 가장 큰 것 → 대척점 중 거리가 가장 긴 것 → 지지선 두 개로 볼록 다각형을 돌면서 거리 구하기
1. Convex Hull 구하기
2. 두 개의 지지선에 대해 거리 구하기
3. 두 개의 지지선에 대해 CCW 구하기
4. CCW가 음수/양수(시계/반시계)일 경우 인덱스 증가
5. 한 바퀴 돌 때 까지 2~4번을 반복

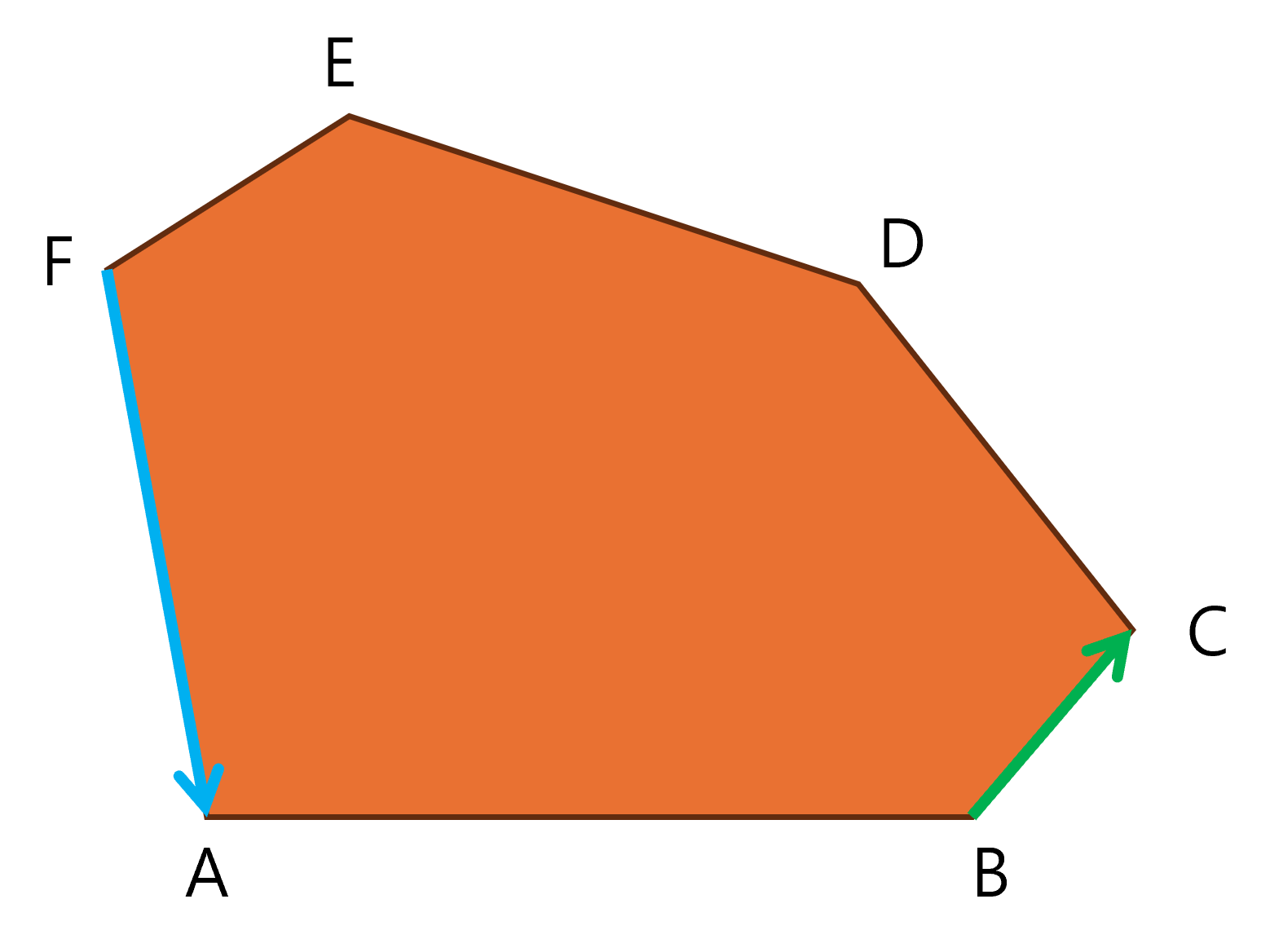

이게 뭔 소리인가? 하겠지만 그림으로 보면 쉽게 이해가능하다.
이하 생략 ...
위와 같은 과정을 계속 반복하면서 한 바퀴를 돌면 된다.
직관적으로 보면 두 직선이 이루는 각에 따라 두 직선 사이의 거리가 증가할지 감소할지 결정되기 되기 때문에 투 포인터처럼 돌려주면 된다.
예시 코드
문제(https://www.acmicpc.net/problem/2049)에 대한 코드 볼록 다각형을 만들고 캘리퍼스를 돌리면 되는 문제이다.
스택을 벡터로 변환하다 보니 시계 방향으로 캘리퍼스를 회전시켰다.
#include <iostream>
#include <vector>
#include <queue>
#include <stack>
#include <algorithm>
#include <map>
#include <cmath>
using namespace std;
struct Dot {
int x, y;
};
int N;
vector<Dot> input;
stack<Dot> s;
vector<Dot> convexHull;
int cross(Dot& a, Dot& b, Dot& c)
{
Dot line1 = { b.x - a.x, b.y - a.y };
Dot line2 = { c.x - b.x, c.y - b.y };
int r = line1.x * line2.y - line1.y * line2.x;
if (r < 0) return -1;
if (r > 0) return 1;
return 0;
}
int cross2(Dot& a, Dot& b, Dot& c, Dot& d) {
Dot line1 = { b.x - a.x, b.y - a.y };
Dot line2 = { d.x - c.x, d.y - c.y };
int r = line1.x * line2.y - line1.y * line2.x;
if (r < 0) return -1;
if (r > 0) return 1;
return 0;
}
int getDistance(Dot a)
{
//Dot0과의 distance
return (input[0].x - a.x) * (input[0].x - a.x) + (input[0].y - a.y) * (input[0].y - a.y);
}
bool cmp(Dot& a, Dot& b) {
int r = cross(input[0], a, b);
if (r > 0) return 1;
if (r == 0) return getDistance(a) < getDistance(b);
return 0;
}
int main()
{
ios::sync_with_stdio(false);
cin.tie(NULL);
cout.tie(NULL);
cin >> N;
int aaa, bbb, taa, tbb;
cin >> aaa >> bbb;
input.push_back({ aaa , bbb });
for (int i = 1; i < N; ++i) {
cin >> aaa >> bbb;
if (aaa < input[0].x) {
taa = input[0].x;
tbb = input[0].y;
input[0] = { aaa, bbb };
input.push_back({ taa, tbb });
}
else if (aaa == input[0].x && bbb < input[0].y) {
taa = input[0].x;
tbb = input[0].y;
input[0] = { aaa, bbb };
input.push_back({ taa, tbb });
}
else {
input.push_back({ aaa, bbb });
}
}
sort(input.begin() + 1, input.end(), cmp);
s.push(input[0]);
s.push(input[1]);
for (int i = 2; i < input.size(); ++i)
{
while (s.size() >= 2) {
Dot prev = s.top();
s.pop();
Dot prev2 = s.top();
if (cross(prev2, prev, input[i]) > 0) {
s.push(prev);
break;
}
}
s.push(input[i]);
}
while (!s.empty()) {
convexHull.push_back(s.top());
s.pop();
}
int index = 1;
int maxDis = 0;
int cs = convexHull.size();
for (int i = 0; i < cs; ++i) {
while (cross2(convexHull[i], convexHull[(i + 1) % cs], convexHull[index % cs], convexHull[(index + 1) % cs]) < 0) {
//cout << "(" << convexHull[i].x << ", " << convexHull[i].y << ")" <<
// " "<< "(" << convexHull[index % cs].x << ", " << convexHull[index % cs].y << ")" << "\n";
int currDis = (convexHull[i].x - convexHull[index % cs].x) * (convexHull[i].x - convexHull[index % cs].x)
+ (convexHull[i].y - convexHull[index % cs].y) * (convexHull[i].y - convexHull[index % cs].y);
if (maxDis < currDis) {
maxDis = currDis;
}
index++;
}
//cout << "(" << convexHull[i].x << ", " << convexHull[i].y << ")" <<
// " " << "(" << convexHull[index % cs].x << ", " << convexHull[index % cs].y << ")" << "\n";
int currDis = (convexHull[i].x - convexHull[index % cs].x) * (convexHull[i].x - convexHull[index % cs].x)
+ (convexHull[i].y - convexHull[index % cs].y) * (convexHull[i].y - convexHull[index % cs].y);
if (maxDis < currDis) {
maxDis = currDis;
}
}
cout << maxDis;
return 0;
}
